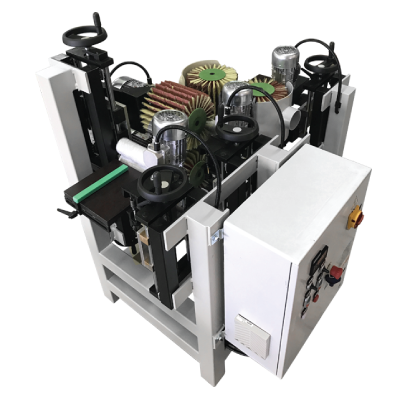

QUICKWOOD QT 4 Automatic Machine With 4 Brushes At 360°

ITALY

Code No. QMQT4 .

Model QT4 is as QT2 but with two horizontal sanding drums also equipped with Quick Flex. The lower sanding drums are fixed on the table and the upper ones are adjustable up and down.

FEATURES

Speed of rotation of brushes from 200 to 1200 rpm, continuously adjustable by electronic inverter
Drive-in and out-of-feed rollers. Pressure rollers with special adjustable springs to adapt to curved shapes
Adjustable brush supports both in height and width to ensure the recovery of the brush wear and to adapt to the shape of the workpieces

TECHNICAL SPECIFICATION OF QUICKWOOD QT 4 Automatic Machine With 4 Brushes At 360°

Main motors, kw	2 x 0,55
Revolutions per min.	200 – 1100
Horizontal drums, kw	2 x 0,37
Horizontal drums rpm	900
Length of spindle mm	4X300
Adjustable in width, mm	200
Adjustable in height, mm	300
Feed drive, kw	2 x 0,25
Feed speed, m/min	5
