ITALY

VALIANI NEXUS

Code No. 3669 .
100% YIELD = 0 WASTE
100% YIELD = 0 WASTE

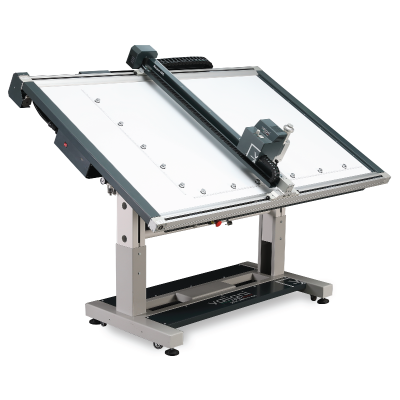

VALIANI NEXUS ( Working Area 60” x 40″)

ADVANCED SYSTEM. ADVANCED FEATURES. SUPERIOR ENGINEERING
The Nexus generation of mat cutting machines represent the latest evolution of years of experience in developing and building equipment for the framing industry. Thanks to the robust frame structure and the possibility of customization through a wide range of tools. Nexus is a machine that can be used to meet different production standards and applications. Nexus reduces your work time by more than 50% compared to manual work, improving precision and consistency, but above all unleashing your creativity.



MATERIALS

• From 4 to 12 mat-boards
• Foam Board (Up to 3/16”)
• Gator board
• Corrugated cardboard
• Grey Chip board

FEATURES

  • The Button Clamp system allows you to trim your mat-board right to the edges, optimizing the material yield and leave no marks on your matboard!
  • Virtually Endless cutting possibilities! From thin to very thick mat-board, simple to intricate objects, face up or face down, beveled or straight
  • ADJUSTABLE STAND Space is no longer a problem with the Multi-position Stand Adjust it as you wish!

TECHNICAL SPECIFICATION OF VALIANI NEXUS

Tool Change Manual
Tool Avaiable 40°, 45°, 90°, Embossing, Creasing, Pen holder
Connectivity USB & Bluetooth
File Format SVG, PLT, DXF, CF2
Cutting Capacity 5mm (3/16”)
Media Hold System Clamping System Adjustable Button Clamp
Cutting Size 1530 X 1020mm(60” X 40”)
Speed 500mm(19.5”)/Sec
Acceleration 1.1 m/s2
Power Requirements Sinle Phase 100/240V 50/60Hz - 6A
Air Requirement 6 Bar/90 PSI - 2.50 CFM
Cutting Area Normal Width:2080mm(82”) Height:1790mm(70.5”) Depth:1460mm(64.5”)
Flat Width:2080mm(82”) Height:1100mm(43.3) Depth:1594mm(62.3)
Up-Right Width:2080mm(82”) Height:2050mm(80.7”) Depth:908mm(35.8”)
